Car Trailer Kit - 10" Wheels
Kit incudes -

X2 - 20.5x8.0-4ply 10" Wheels 100PCD
X2 - 4 Stud Stub axle 100PCD
X4 - Spring Hangers
X2 - 3 Leaf Springs
X2 - 5 Hole Plate
X4 - 12mm UBolt
X1 - 7 Pin Plug (plastic) & 5metres of 7 Core Cable
X2 - Led Tail Lights (Stop/Tail/Indicator)
X1 - Number Plate Light
X1 - 1200KG Soft Grip Bradley Hitch
X1 - Jockey Wheel including Clamp
£ 415.13 415.13 GBP
Car Trailer Kit - 13" Wheels
Kit incudes -
X2 - 155R13 Wheels 100PCD
X2 - 4 Stud Stub Axle 100PCD
X4 - Spring Hangers
X2 - 3 Leaf Springs
X2 - 5 Hole Plate
X4 - 12mm UBolt
X1 - 7 Pin Plug (plastic) & 5metres of 7 Core Cable
X2 - Led Tail Lights (Stop/Tail/Indicator)
X1 - Number Plate Light
X1 - 1200KG Soft Grip Bradley Hitch
X1 - Jockey Wheel including Clamp
£ 420.00 420.0 GBP
Ifor Black Dust Cap
- Authentic Ifor Williams

- Dust Cap

- Black
£ 8.40 8.4 GBP
Metal Mudguard - 279X915 - 2mm Plate
- Metal Mudguard
- 279x915
- 2mm Plate.
£ 11.10 11.1 GBP

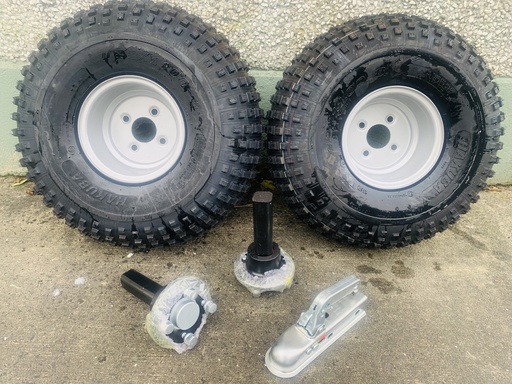

Quad Trailer Kit
Included in the kit;

X1 - Pressed Steel Hitch Head
X2 - 22x11.00-8 knobby tyres
X2 - KNOTT 4 Stud Stub Axle – Unbraked


X1 - Pressed Steel Hitch Head;
- Couples quickly and securely to 50mm tow balls.
- Suitable for most lightweight, unbraked trailers.
- Accepts integral Brass security lock to prevent the trailer being unhitched from a tow ball.
- Manufactured from pressed steel and bright plated to resist corrosion.
- Fully approved to European Directive 94/20EC for road use.


X2 - 22x11.00-8 knobby tyre on 4 stud rim;
- ATV trailer
- Quad wheel 100mm PCD rim
- For use on ride on garden trailers, ATV quad trailers, buggys, karts, small agricultural machinery.
- The tyres are heavy wearing 4ply with a thread depth of 9.5mm - they are 'E' marked tyres.
- Overall diameter: 538mm, Max section width: 270mm, Max load: 340lbs @ 5 PSI.
- The wheels are heavy duty steel rims with 4 stud holes with a 100mm PCD. The 100mm PCD rim has a 60mm centre hole & 13.5mm stud holes - suits an M12 stud.

This type of knobby stud pattern is very versatile, it is a flotation tyre so it causes minimal disturbance to the ground & it leaves very little track pattern on the ground, it also absorbs a lot of the bumps & uneven surface to give a smooth ride. They are for off road applications only.


X2 - KNOTT 4 Stud Stub Axle – Unbraked;
- Rated to 80mph
- Sealed precision ball bearings
- 4 x M10 studs, the PCD is 4" inch
- Shaft is 35x35mm square - 200mm long (solid steel) with rounded edges for ease of fitment
- Weight capacity is 750kg per pair

These are genuine 'SPP' Steel Press Production.  These hubs can be used for road trailers, ride on lawn mowers, garden trailers, ATV quad trailers, buggy's, karts, hay bobs, hay turners, tedders, small agricultural machinery.
£ 208.15 208.15 GBP
