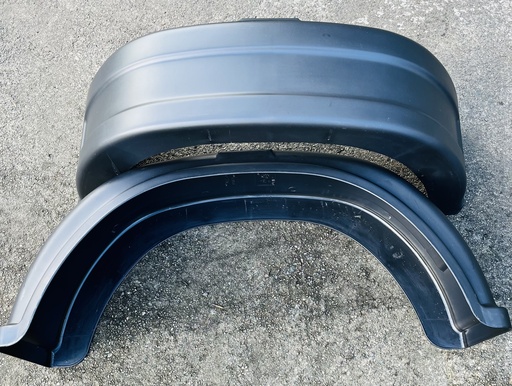

Plastic Mudguard 190x680.

80mm Side Winder Jack Leg.

[CERTIFICATION MARK] E11 certification mark, comply with European road safety standards.

[WATER RESISTANCE] The LEDs lights with IP65 waterproof rating and the light can adapt to severe thunderstorm weather, which has the feature of long lasting, waterproof and damp proof.

[EASY to INSTALL] The pre-installed screws with with nuts are on the back of the lights

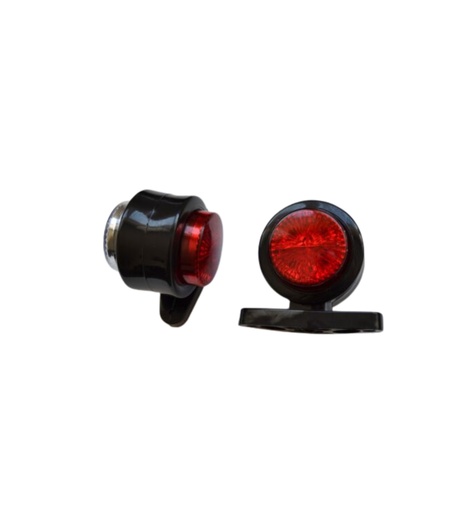

Led Mudguard light - Red/ White.

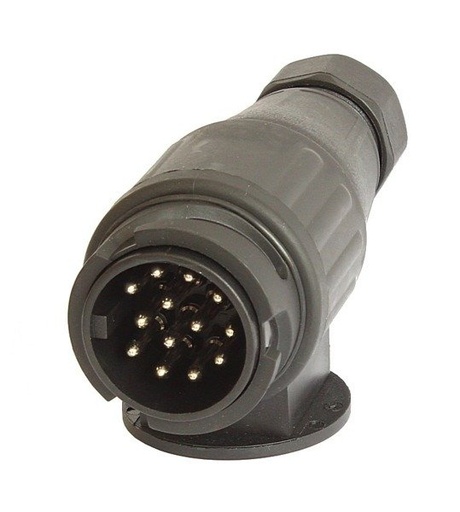

13 Pin Euro Plug

- For trailers with a gross weight of 1400kg to 2700kg.

- Delta Coupling Style with front mounting holes at 100mm centres (Please check as some have 120mm bolt centres).

- Suitable for standard 50mm tow balls.

- Supplied with handle, pad and clamp to fit a 48mm Jockey Wheel.

- Supplied ready to fit, no assembly required. Includes secondary coupling cable and guide (pre-fitted).

- Suitable for auto-reverse brake systems

Standard UK 7-pin trailer plug in metal housing. N-type.

5ft x 3ft 3in Quad Trailer comes with removable mesh sides, and ramp back door.

Included in the kit;

X1 - Pressed Steel Hitch Head
X2 - 22x11.00-8 knobby tyres
X2 - KNOTT 4 Stud Stub Axle – Unbraked


X1 - Pressed Steel Hitch Head;
- Couples quickly and securely to 50mm tow balls.
- Suitable for most lightweight, unbraked trailers.
- Accepts integral Brass security lock to prevent the trailer being unhitched from a tow ball.
- Manufactured from pressed steel and bright plated to resist corrosion.
- Fully approved to European Directive 94/20EC for road use.


X2 - 22x11.00-8 knobby tyre on 4 stud rim;
- ATV trailer
- Quad wheel 100mm PCD rim
- For use on ride on garden trailers, ATV quad trailers, buggys, karts, small agricultural machinery.
- The tyres are heavy wearing 4ply with a thread depth of 9.5mm - they are 'E' marked tyres.
- Overall diameter: 538mm, Max section width: 270mm, Max load: 340lbs @ 5 PSI.
- The wheels are heavy duty steel rims with 4 stud holes with a 100mm PCD. The 100mm PCD rim has a 60mm centre hole & 13.5mm stud holes - suits an M12 stud.

This type of knobby stud pattern is very versatile, it is a flotation tyre so it causes minimal disturbance to the ground & it leaves very little track pattern on the ground, it also absorbs a lot of the bumps & uneven surface to give a smooth ride. They are for off road applications only.


X2 - KNOTT 4 Stud Stub Axle – Unbraked;
- Rated to 80mph
- Sealed precision ball bearings
- 4 x M10 studs, the PCD is 4" inch
- Shaft is 35x35mm square - 200mm long (solid steel) with rounded edges for ease of fitment
- Weight capacity is 750kg per pair

These are genuine 'SPP' Steel Press Production.  These hubs can be used for road trailers, ride on lawn mowers, garden trailers, ATV quad trailers, buggy's, karts, hay bobs, hay turners, tedders, small agricultural machinery.

1500KG - Axle for 7 foot Trailer - Braked 5 Stud Hubs at 165.1
